Building Docker images for multiple architectures

My little mdserver app has been a good way for me to start experimenting with the the devops side of things, especially building for Docker. Since I wanted to make the Docker image available for ARM Linux & x86 Linux I had a janky shell script that looked like this:

#!/bin/bash

# Extract the version number from package.json using jq
VERSION=$(jq -r .version package.json)

docker build --platform linux/amd64 -t iankulin/mdserver:$VERSION -t iankulin/mdserver:latest .
docker build --platform linux/arm64 -t iankulin/mdserver:arm64-$VERSION -t iankulin/mdserver:arm64-latest .

docker push iankulin/mdserver:arm64-$VERSION
docker push iankulin/mdserver:arm64-latest

docker push iankulin/mdserver:$VERSION
docker push iankulin/mdserver:latest

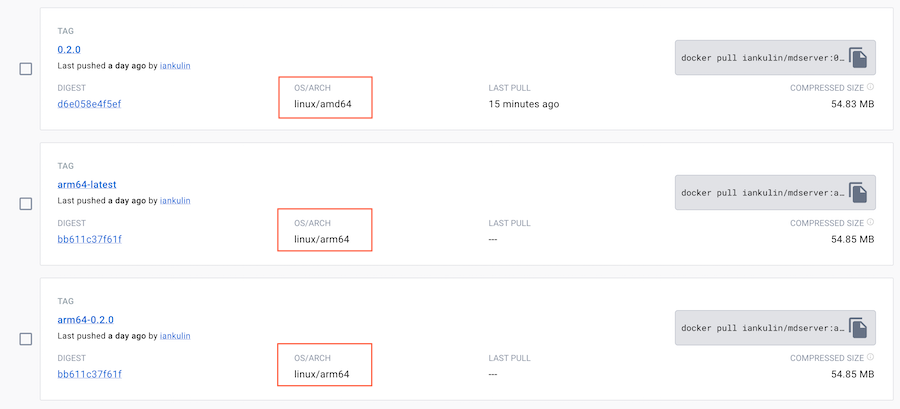

So I’d build two different versions, and use the tags to separate them. In the registry it’d look like this:

But the big official images, for instance Node, have a long list of architectures associated with each tag - these are multi-platform images .

To create these, we need to use the docker buildx feature. If you google how to do this, there’s a few mentions of how to ’turn on’ this ’experimental’ feature. I didn’t do that, so perhaps it’s been mainstreamed now. What I did to enable it was to enter:

docker buildx create --use

Then to create my dual architecture image:

docker buildx build --push \
--platform linux/arm64,linux/amd64 \
-t iankulin/mdserver:latest .

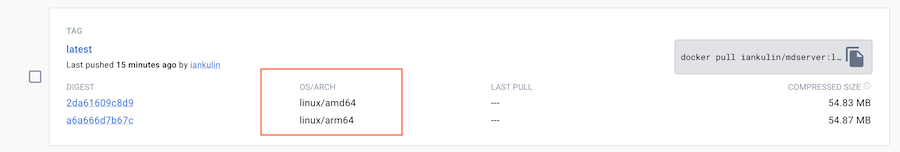

Then 113 seconds later (thank you Apple silicon), this showed up in my Docker Hub:

Lovely!

Buoyed by success, I decided I should also be shipping a Raspberry Pi version, which I guess is 32 bit ARM? So I dropped this into the CLI:

docker buildx build --push \
--platform linux/arm64,linux/amd64,linux/arm/v7 \
-t iankulin/mdserver:latest .

This was somewhat less successful. I think the story of the building for other architectures with buildx is that the container has QEMU binaries for them - ie like it’s running a little VM to do the build inside of. That’s three inception layers in, so I guess that’s why it’s slow for an alien architecture.

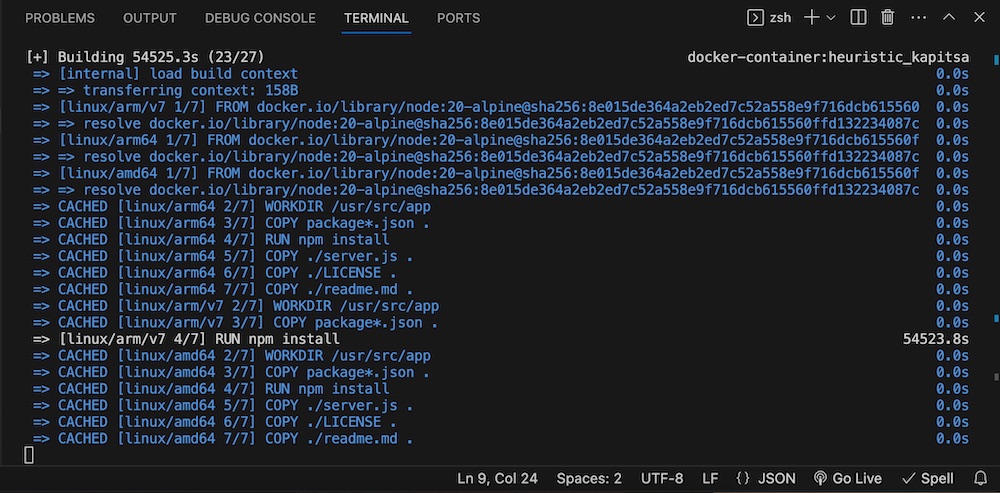

In any case, this may still work, but at the time of writing, the NPM install had been running overnight . If this speed turns out to be typical, it’s a good reason to look at outsourcing your Docker builds to GitHub actions.

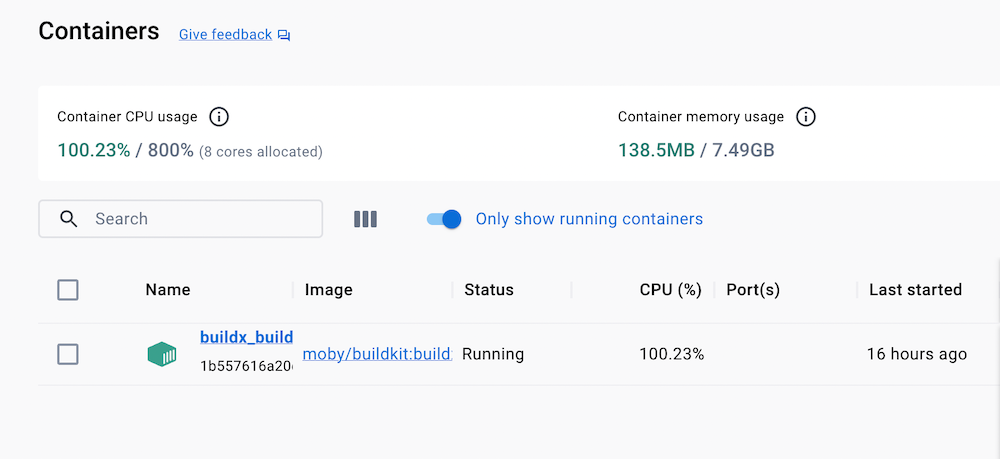

With all eight cores pegged at 100% on an M1 MacBook:
