Running a Browser Remotely - n.eko
2 May 2023When I installed the backup NAS and a media server at the remote site, one of the jobs on my list was to reserve the IP addresses for the NAS, node, and the VM in the local router. I carefully did that, but when I got home (200 km later) and opened my laptop, the browser page was open on the DHCP settings with a table of mac addresses I’d added, and the reserved IP’s, and at the bottom of the page, a large blue “Apply Changes” button. Had I pressed that button to save my changes correctly? I’m not sure.
I’ve got a couple of options to access the router (without one of those sometimes frustrating tech support calls).
One is that Tailscale (that I’m using for the VPN tunnel) has a feature called Subnet Routers . This is intended for this use-case - there’s a device (the remote router) that can’t run a Tailnet client that we’d like to access, but it’s on a local network with a device that can. This would often be the case for things like you want to print to a printer at home from work - you can’t Tailnet into the printer, but you can to the home server which is on the same network. Installing the Tailscale subnet router would then allow a path to the printer over the local home network.
To do that, I need to ssh into the media server node and set it all up, and it will involved a network disconnect. This has a bit of risk involved since I might make an error and then not be able to fix it.
A neater option might be to run a web browser instance on the media server, and use that to access the web interface. In days gone past that might have been Lynx for a pure text experience, but another, more modern possibility might be browsh . This very cool project uses Firefox as it’s engine, but then renders all the page output as ASCII text into a terminal. There’s a fun video of browsh playing Youtube videos all in half size ascii colour blocks in the terminal.

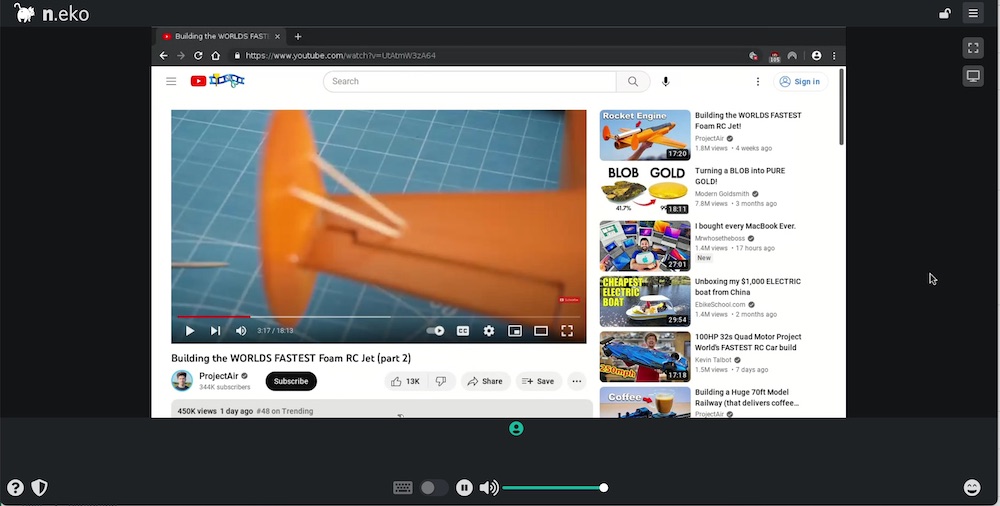

I ended up going an even more modern way by using the virtual browser N.eko . This way you get a full graphical browser running on a remote machine. Licenced under the Apache license, it’s a project of Miroslav Šedivý . I’m sure I’ve read in a forum somewhere that he built it to watch anime online with friends - and there’s some functionality (such as chats) that supports that.
Docker is the easy way to spin it up. It is a little bit resource hungry - 1GB is specified for the lowest resolution, but this guy shows adding a swap file to make the memory up to that. My VPS has 512KB, but NVMe storage, so I tried without the swap file and could not get it to start, and then with the swap file and it worked fine. Here’s my compose:
version: '3.5'services: neko: image: m1k1o/neko:chromium restart: always cap_add: - SYS_ADMIN ports: - "8081:8080" - "59000-59100:59000-59100/udp" environment: DISPLAY: :99.0 SCREEN_WIDTH: 1024 SCREEN_HEIGHT: 576 SCREEN_DEPTH: 16 NEKO_PASSWORD: neko NEKO_ADMIN: admin NEKO_BIND: :8080 NEKO_NAT1TO1: 100.138.120.102
The only thing in there that took a bit of sorting out was the last line - the NEKO_ATA1TO1 environment variable. I didn’t need that at all running on a remote VPS - it just all worked out of the box, but when I was trying on my development node at home (which is a close hardware/software mirror of the remote setup I need it for) I had less luck.
In that configuration, when I went to log in, it would take ages, then say peer disconnected. In the logs, there was an error WRN read message error error="websocket: close 1005 (no status)". Some googling took me to a GitHub issue about it. When n.eko starts, it autodetects the external IP and expects connections from there. This will also be an issue for my remote site, since it’s on a Tailnet that won’t match it’s external IP. The solution is to add the NEKO_NAT1TO1 environment variable in your docker-compose.yaml and set it to a single IP address with no quotes - being the IP address you’ll connect to it on.
Edits:
4/3/24 - changed the image name to m1k1o/neko:chromium from nurdism/neko:chromium which was an old old version.
